Lightweight Fireproof Waterproof PVC Gypsum Ceiling Panel for Suspended Ceiling Systems

ブランド名:	SUNHOUSE
モデル番号:	TH0005
MOQ:	100
価格:	$0.90-1.60

詳細情報

製品の説明

詳細情報

起源の場所:

広東省、中国

保証:

1年

アフターサービス:

オンラインテクニカルサポート、現地査察、自由な予備品

プロジェクトソリューション能力:

グラフィックデザイン、3Dモデルデザイン、プロジェクトのトータルソリューション

応用:

ホテル、Oifferの天井およびInterionの装飾/ホテル

デザインスタイル:

モダンな

関数:

、健全な熱絶縁材耐火性、防止、湿気型防止- Smoke-Proof、防音防水吸収

特徴:

功妙な天井、蜜蜂の巣の天井、統合された天井、穴があいた天井

天井タイルの形状:

矩形

天井タイルタイプ:

PVC 天井

サイズ:

595x595mm、600x600mm、603x603mm、605x605mm

厚さ:

7mm、7.8mm、8mm、9mm…

角:

テープが付いているまたはテープのない正方形の端

密度:

280~350 kg/m3

原材料:

石膏ボード

表面:

輸入されるか、または国内ポリ塩化ビニールのフィルム

証明書:

利用できるISSO/セリウム

MOQ:

1*20GP コンテナ

無料サンプル:

利用できるいつでも

重さ:

軽量

材料:

PVCと石膏

キーワード:

ポリ塩化ビニールのギプスの天井

キーワード:

ポリ塩化ビニールの天井板

コア:

石膏ボード

色:

ホワイト (カスタマイズ可能)

取付タイプ:

落としなさい

設置方法:

中断された天井システム

耐水性:

防水

製品の説明

PVC Laminated Gypsum Ceiling Panels – 595×595 mm Suspended Ceiling Tiles

PVC laminated gypsum ceiling panels are composite building materials consisting of a gypsum core with a factory-applied PVC film surface layer. They are designed for use in exposed grid suspended ceiling systems, providing a balance of dimensional stability, surface durability, and functional performance in controlled indoor environments.

Technical Specifications

Parameter	Specification
Standard Dimensions	595 × 595 mm, 600 × 600 mm, 603 × 603 mm, 605 × 605 mm
Thickness Range	7.0 mm, 7.8 mm, 8.0 mm, 9.0 mm
Edge Type	Square edge (with or without reinforcing tape)
Core Density	280 – 350 kg/m³
Core Material	Gypsum board with stabilizing additives
Surface Finish	PVC film lamination (matte, satin or embossed texture available)
Performance Characteristics	Moisture resistance, wipe-clean surface, moderate fire retardancy, basic sound absorption (perforated options)
Surface Patterns	Plain, perforated, sand texture, geometric, simulated wood grain
Grid System Compatibility	Standard 15 mm or 24 mm exposed T-bar grid
Primary Applications	Commercial offices, hotels, hospitals, schools, retail premises and light industrial interiors

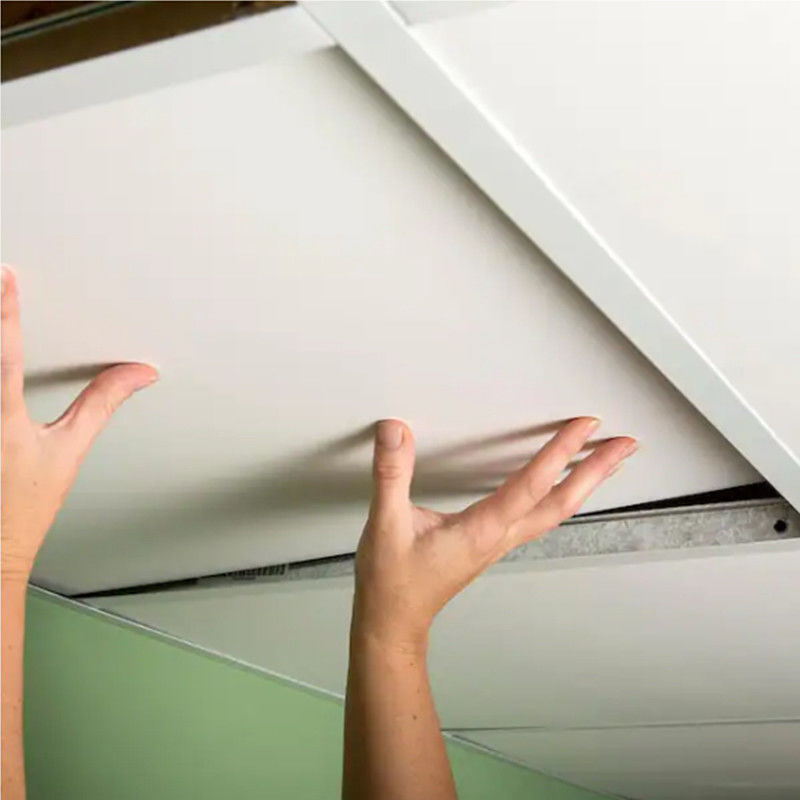

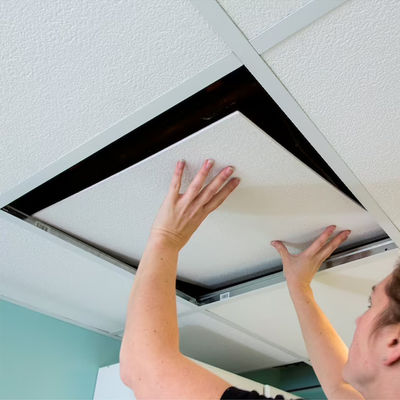

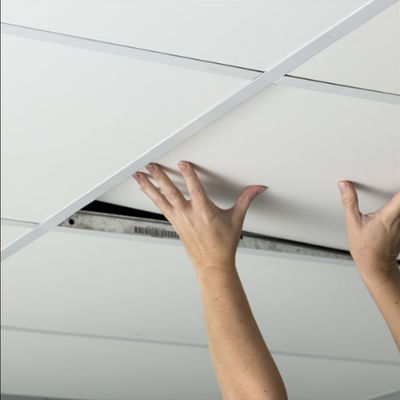

Installation and Handling Guidelines

Technical Notes for Proper Use:

• Panels must be stored flat on a level surface in a dry, ventilated warehouse with relative humidity below 85%. Maximum safe stacking height is 8–10 panels.
• Allow panels to acclimatize to the installation environment for at least 24 hours prior to fixing.
• Installation temperature range: 5°C to 40°C. Avoid installation in areas with sustained humidity exceeding 90%.
• When cutting, use a fine-tooth hand saw or scoring knife. Appropriate personal protective equipment (dust mask, safety glasses) is recommended to control gypsum dust.
• The supporting T-bar grid must be installed level and rigidly fixed according to manufacturer load requirements.
• Surface cleaning should be performed with a soft damp cloth and neutral detergent. Avoid abrasive materials or solvent-based cleaners that may degrade the PVC layer.
• Perforated panels should be inspected periodically for dust accumulation in the holes to maintain designed acoustic performance.

Project References

Selected Project Supply Records:

• 26,000 m² of 8 mm perforated PVC laminated panels supplied for a Grade-A office tower in Southeast Asia. The system provided effective sound absorption in open-plan office areas while maintaining ease of access for maintenance.

• 14,500 m² of 7.8 mm plain-finish panels used in a mid-range hotel renovation project. The moisture-resistant surface performed reliably in bathroom corridors and high-humidity zones.

• 11,000 m² of 9 mm sand-texture panels installed in a regional hospital outpatient building, meeting requirements for cleanability and low dust emission in clinical environments.

Frequently Asked Questions

Q1. What are the recommended storage conditions?

A: Panels should be kept flat on level supports in a dry warehouse. Avoid direct sunlight, rain exposure, or stacking higher than 10 panels to prevent warping.

Q2. What payment and trade terms do you offer?

A: Standard payment is 30% T/T deposit with balance prior to shipment, or irrevocable L/C at sight. Trade terms include FOB, CFR and CIF.

Q3. What is the normal production lead time?

A: For standard specifications and colors, production lead time is typically 20–25 days after receipt of deposit. Custom surface patterns may require additional time.

Q4. Do you accept OEM or custom design orders?

A: Yes. We can produce according to client-specified dimensions, surface patterns, or colors, subject to minimum order quantity requirements.

Q5. Are product samples available?

A: Samples of standard items can be provided free of charge. The recipient is responsible for courier shipping costs.
